CPU Socket : AM5
Chipset : AMD X870E
CPU supports : AMD 7000 Series Processors
CPU supports : AMD 8000 Series Processors
CPU supports : AMD 9000 Series Processors
Memory Standard : DDR5
Maximum Memory Supported : 256 GB
Number of Memory Slots : 4
Frequency Memory : 9066(OC) MHz
Support Dualchannel : Yes
Integrated Audio : 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Integrated LAN : 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
Integrated Wi-Fi : 2×2 Wi-Fi 7 (802.11be)
Integrated Wi-Fi : Bluetooth v5.4
PCI-E x16 : 1 x PCIe 5.0 x16 slot
PCI Express x4 : 1
PCI-E x1 : 1
Interface Serial ATA : 4 x SATA3 6.0 Gb/s
M2 socket : 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSDs; 3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
Raid support : 0,1,10
Power Connector : 1 x 24 pin ATX Power Connector
Power Connector : 2 x 8-pin +12V Power connector

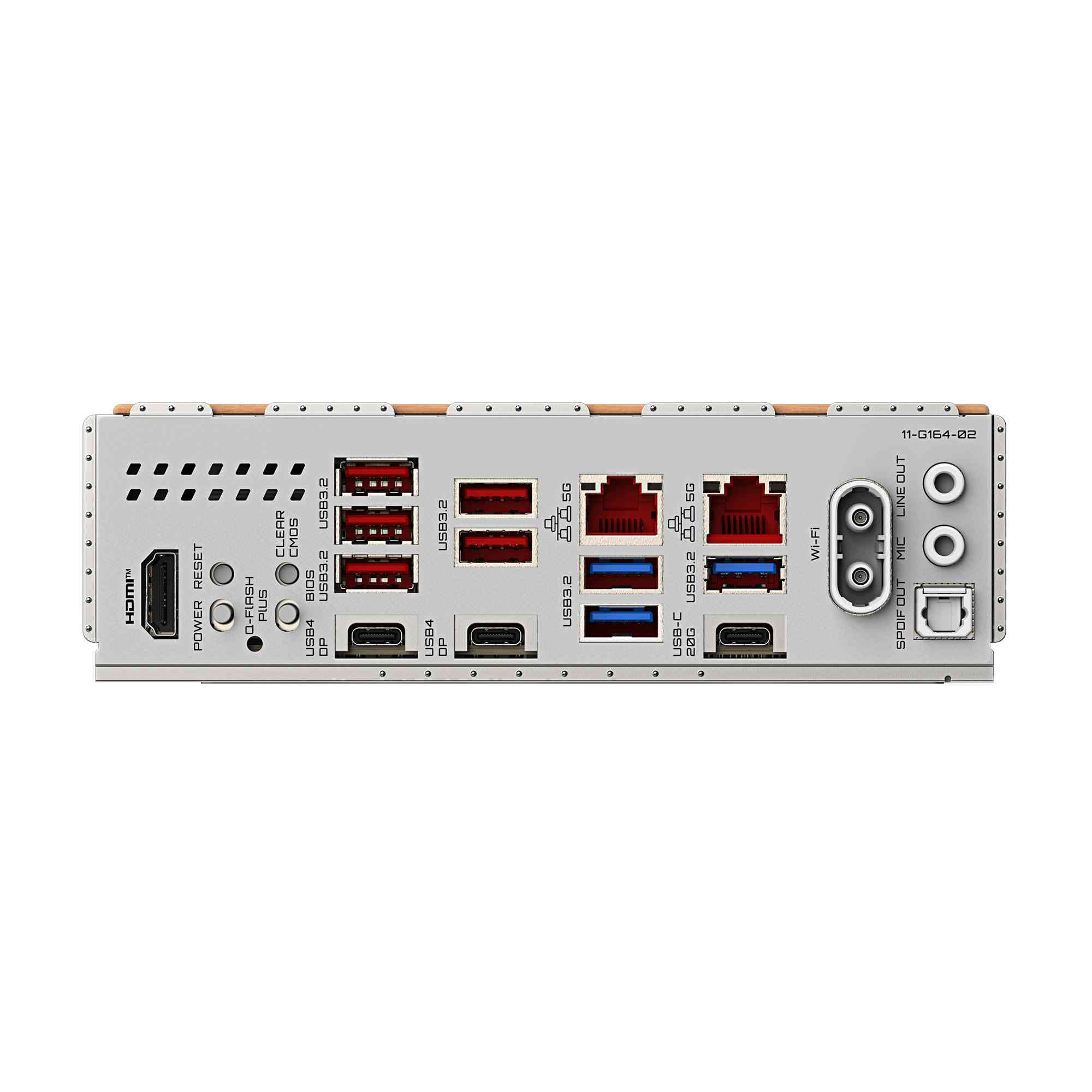

Connectors : 1 x HDMI port
Connectors : 2 x RJ-45
Connectors : 1 x optical S/PDIF Out connector
Connectors : 2 x Аudio jacks
Connectors : 1 x BIOS Flashback Button
Connectors : 2 x SMA antenna connectors
Connectors : 1 x Clear CMOS button
USB Ports : 3 x USB 3.2 Gen 1
USB Ports : 5 x USB 3.2 Gen 2
USB Ports : 2 x USB 2.0
USB Ports : 1 x USB 3.2 Gen1 Type-C
USB Ports : 2 x USB 10Gbps ports Type-C
Dimension : ATX – 30.5 x 24.4 cm
Other : 256 Mb Flash ROM, UEFI AMI BIOS
