CPU Socket : AM5
Chipset : AMD B650
CPU supports : AMD 7000 Series Processors
CPU supports : AMD 8000 Series Processors
CPU supports : AMD 9000 Series Processors
Memory Standard : DDR5
Maximum Memory Supported : 192 GB
Number of Memory Slots : 4
Frequency Memory : 7600(OC) MHz
Support Dualchannel : Yes
Integrated Audio : Realtek AUDIO CODEC
Integrated LAN : Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Integrated Wi-Fi : No
PCI-E x16 : 1 x PCIe 4.0 x16
PCI-E x1 : 3
Interface Serial ATA : 4 x SATA3 6.0 Gb/s
M2 socket : 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support
M2 socket : 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support)
Raid support : RAID 0/1/10 for M.2 NVMe
Power Connector : 1 x 24-pin Main Power connector
Power Connector : 1 x 8-pin +12V Power connector

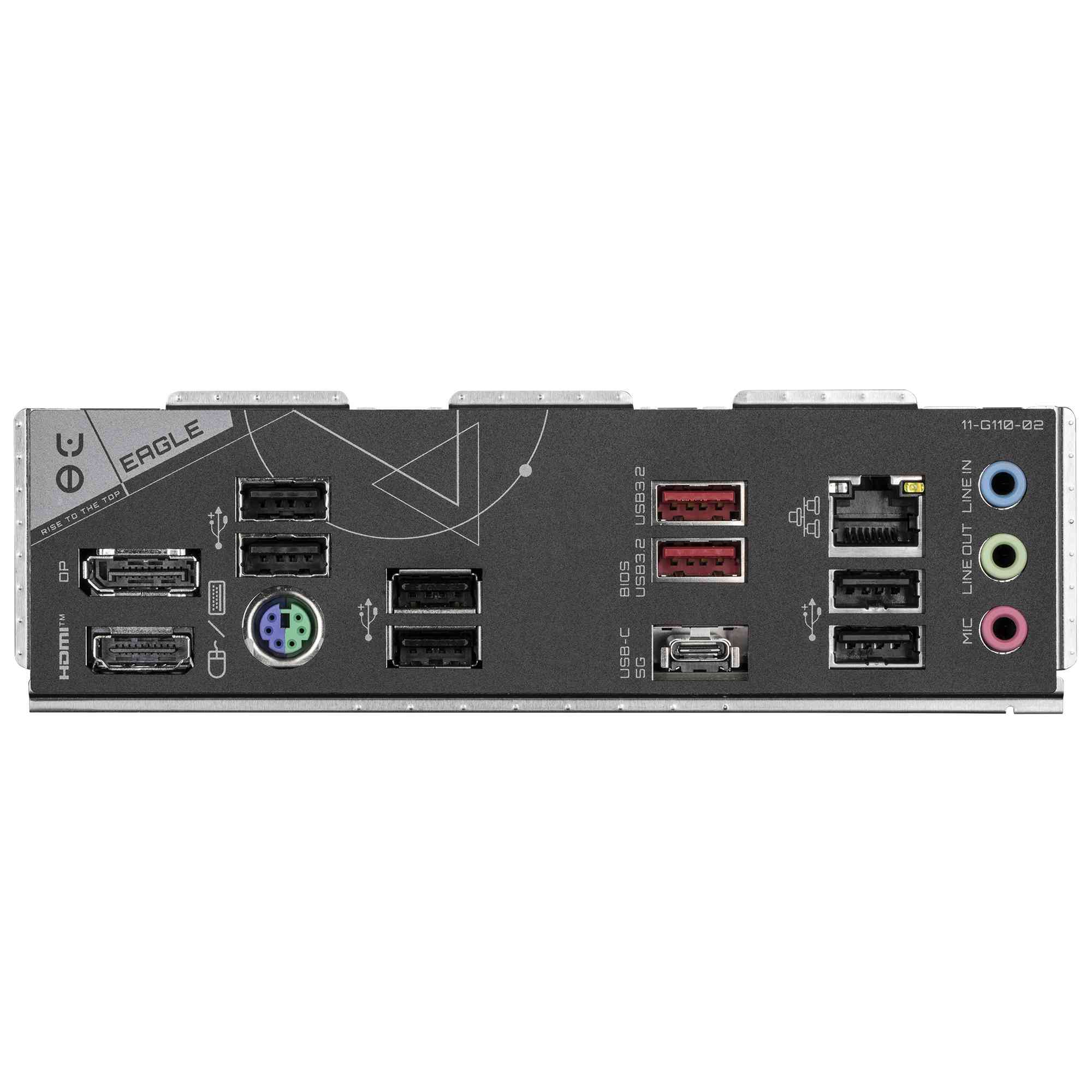

Connectors : 1 x HDMI port
Connectors : 1 x Display Port
Connectors : 1 x RJ-45
Connectors : 1 x PS/2 Mouse/Keyboard
Connectors : 3 x Audio jacks
Connectors : 1 x Q-Flash Plus button
Connectors : 2 x SMA antenna connectors
USB Ports : 1 x USB 3.2 Gen2 Type-C
USB Ports : 2 x USB 3.2 Gen2
USB Ports : 6 x USB 2.0
Dimension : ATX – 30.5 x 24.4 cm
Other : 256 Mb Flash ROM, UEFI AMI BIOS
