CPU Socket : AM5
Chipset : AMD X870
CPU supports : AMD 7000 Series Processors
CPU supports : AMD 8000 Series Processors
CPU supports : AMD 9000 Series Processors
Memory Standard : DDR5
Maximum Memory Supported : 128 GB
Number of Memory Slots : 4
Frequency Memory : 8400(OC) MHz
Support Dualchannel : Yes
Integrated Audio : Realtek ALC4080
Integrated LAN : Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Integrated Wi-Fi : 2×2 Wi-Fi 7 (802.11be)
Integrated Wi-Fi : Bluetooth v5.4
PCI-E x16 : 1 x PCIe 5.0 x16
PCI-E x1 : 1
Interface Serial ATA : 6 x SATA3 6.0 Gb/s
M2 socket : 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)
Raid support : 0,1,10
Power Connector : 1 x 24 pin ATX Power Connector
Power Connector : 1 x 8-pin +12V Power connector

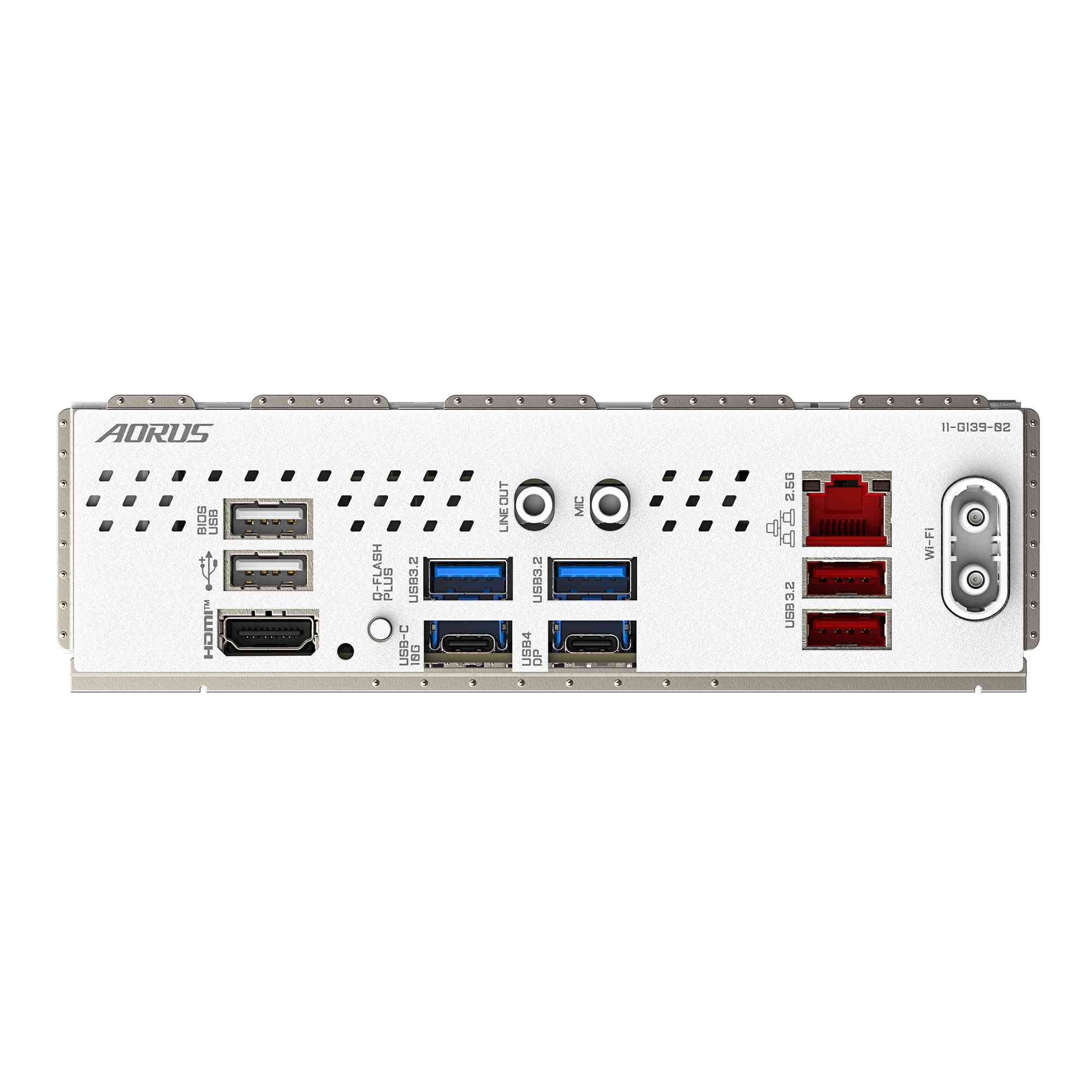

Connectors : 1 x HDMI port
Connectors : 1 x RJ-45
Connectors : 2 x Аudio jacks
Connectors : 1 x Q-Flash Plus button

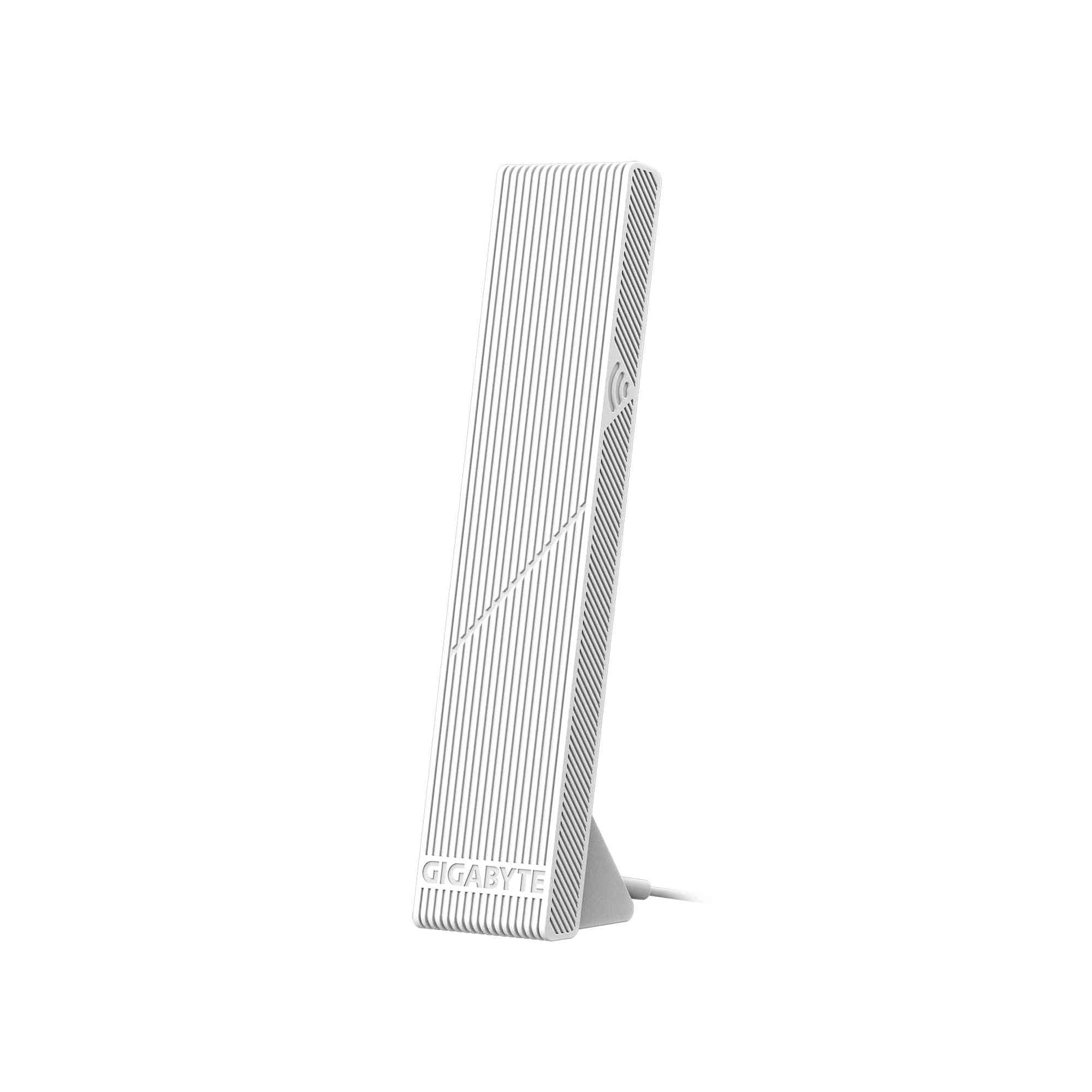

Connectors : 2 x SMA antenna connectors
USB Ports : 2 x USB 3.2 Gen1
USB Ports : 2 x USB 3.2 Gen2
USB Ports : 2 x USB 2.0
USB Ports : USB 3.2 Gen 2 Type-C
USB Ports : 1 x USB4 port Type-C
Dimension : Mini ITX – 17.0 x 17.0 cm
Other : 256 Mb Flash ROM, UEFI AMI BIOS
