CPU Socket : AM5
Chipset : AMD B650
CPU supports : AMD 7000 Series Processors
Memory Standard : DDR5
Maximum Memory Supported : 192 GB
Number of Memory Slots : 4
Frequency Memory : 8000(OC) MHz
Support Dualchannel : Yes
Integrated Audio : Realtek AUDIO CODEC
Integrated LAN : 1 x Realtek 2.5Gb Ethernet port
Integrated Wi-Fi : Realtek® Wi-Fi 6E RTL8852CE 802.11 ax
PCI-E x16 : 1 x PCIe 4.0 x16
PCI Express x4 : 1
Interface Serial ATA : 4 x SATA3 6.0 Gb/s
M2 socket : 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
M2 socket : 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
Raid support : 0,1,10
Power Connector : 1 x 8-pin ATX 12V Power connector
Power Connector : 1 x 24-Pin Power Connector

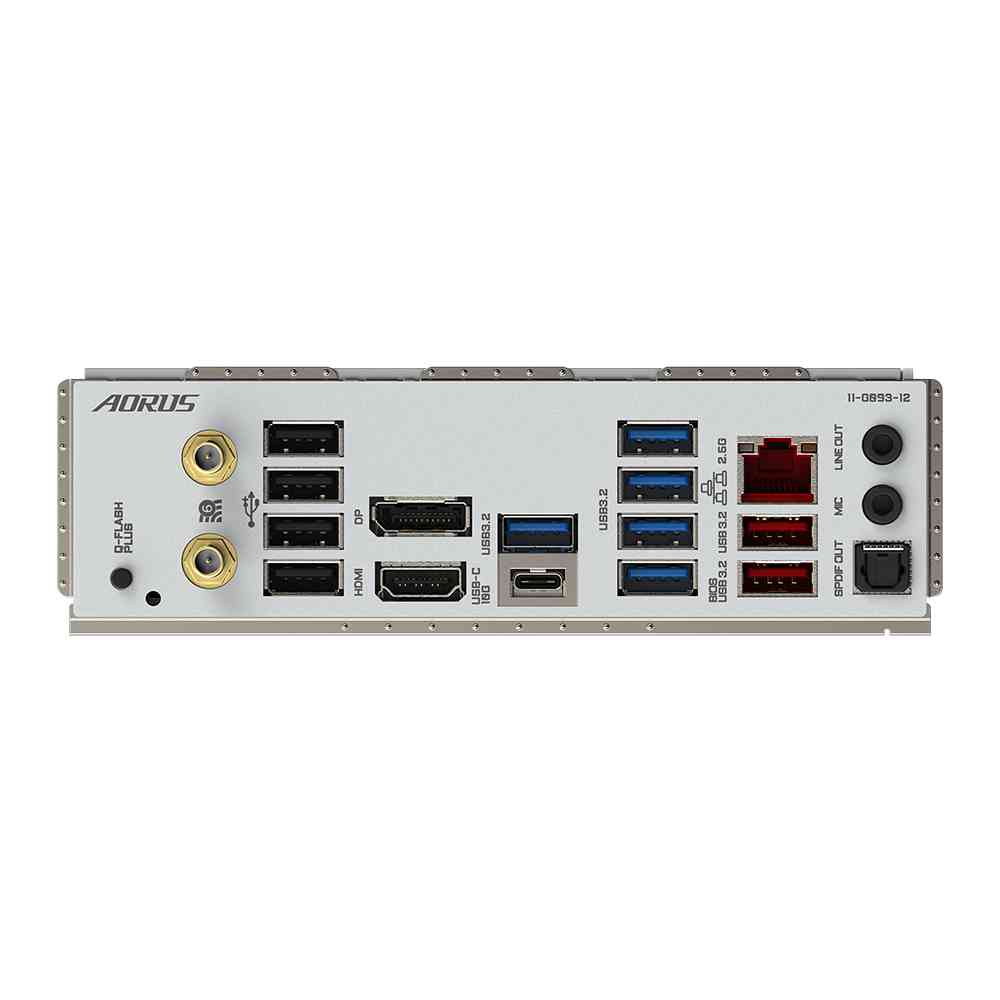

Connectors : 1 x HDMI port
Connectors : 1 x Display Port
Connectors : 1 x RJ-45
Connectors : 3 x Audio jacks
Connectors : 1 x Q-Flash Plus button
Connectors : 2 x SMA antenna connectors
USB Ports : 1 x USB 3.2 Gen2 Type-C
USB Ports : 5 x USB 3.2 Gen 1
USB Ports : 2 x USB 3.2 Gen2
USB Ports : 4 x USB 2.0
Dimension : Micro ATX – 24.4 x 24.4 cm
Other : 256 Mb Flash ROM, UEFI AMI BIOS
