CPU Socket : AM5
Chipset : AMD X870
CPU supports : AMD 7000 Series Processors
CPU supports : AMD 8000 Series Processors
CPU supports : AMD 9000 Series Processors
Memory Standard : DDR5
Maximum Memory Supported : 256 GB
Number of Memory Slots : 4
Frequency Memory : 8200(OC) MHz
Support Dualchannel : Yes
Integrated Audio : Realtek 7.1 Surround Sound High Definition Audio CODEC
Integrated LAN : Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Integrated Wi-Fi : 2×2 Wi-Fi 7 (802.11be)
Integrated Wi-Fi : Bluetooth v5.4
PCI-E x16 : 1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI-E x1 : 2
Interface Serial ATA : 4 x SATA3 6.0 Gb/s
M2 socket : 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
M2 socket : 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
M2 socket : 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSDs
Raid support : 0,1,10
Power Connector : 1 x 24 pin ATX Power Connector
Power Connector : 1 x 8-pin +12V Power connector
Power Connector : 1 x 4-pin +12V Power connector

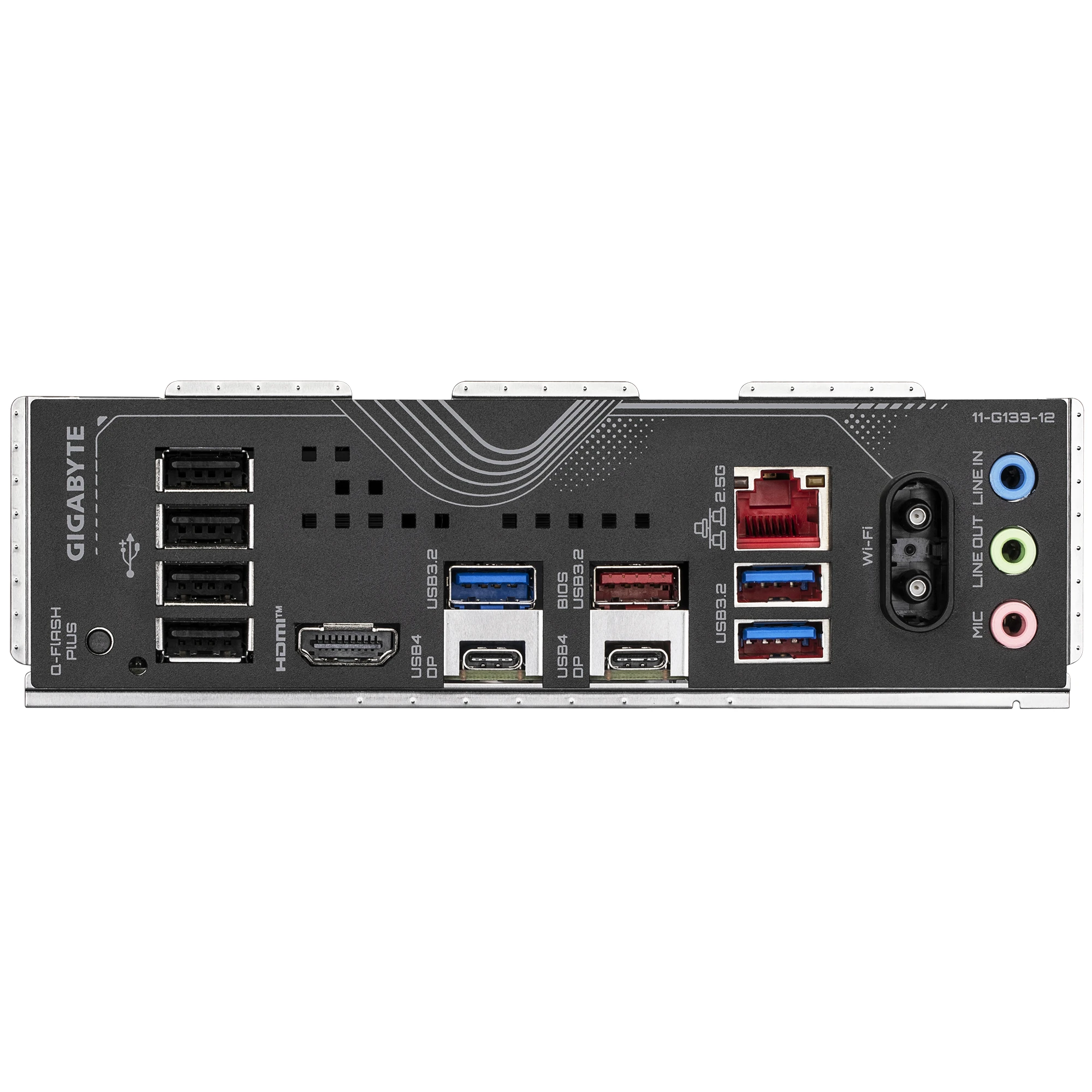

Connectors : 1 x HDMI port
Connectors : 1 x RJ-45
Connectors : 3 x Audio jacks
Connectors : 1 x Q-Flash Plus button
Connectors : 2 x SMA antenna connectors
USB Ports : 1 x USB 3.2 Gen 2 Type-A
USB Ports : 3 x USB 3.2 Gen 1
USB Ports : 4 x USB 2.0
USB Ports : 2 x Thunderbolt 4.0 USB Type-C
Dimension : ATX – 30.5 x 24.4 cm
Other : 256 Mb Flash ROM, UEFI AMI BIOS
