CPU Socket : 1851
Chipset : Intel B860
CPU supports : Intel® Core™ Ultra Processors (Series 2)
Memory Standard : DDR5
Maximum Memory Supported : 256 GB
Number of Memory Slots : 4
Frequency Memory : 9066(OC) MHz
Support Dualchannel : Yes
Integrated Audio : Realtek AUDIO CODEC
Integrated LAN : Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Integrated Wi-Fi : 802.11ax Wi-Fi 6E
Integrated Wi-Fi : Bluetooth 5.3
PCI-E x16 : 1 x PCIe 5.0 x16 slot
PCI Express x4 : 2
PCI-E x1 : 1
Interface Serial ATA : 4 x SATA 6Gb/s
M2 socket : 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
M2 socket : 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support)
Raid support : 0, 1, 5, 10
Power Connector : 1 x 24-pin Main Power connector
Power Connector : 1 x 8-pin +12V Power connector

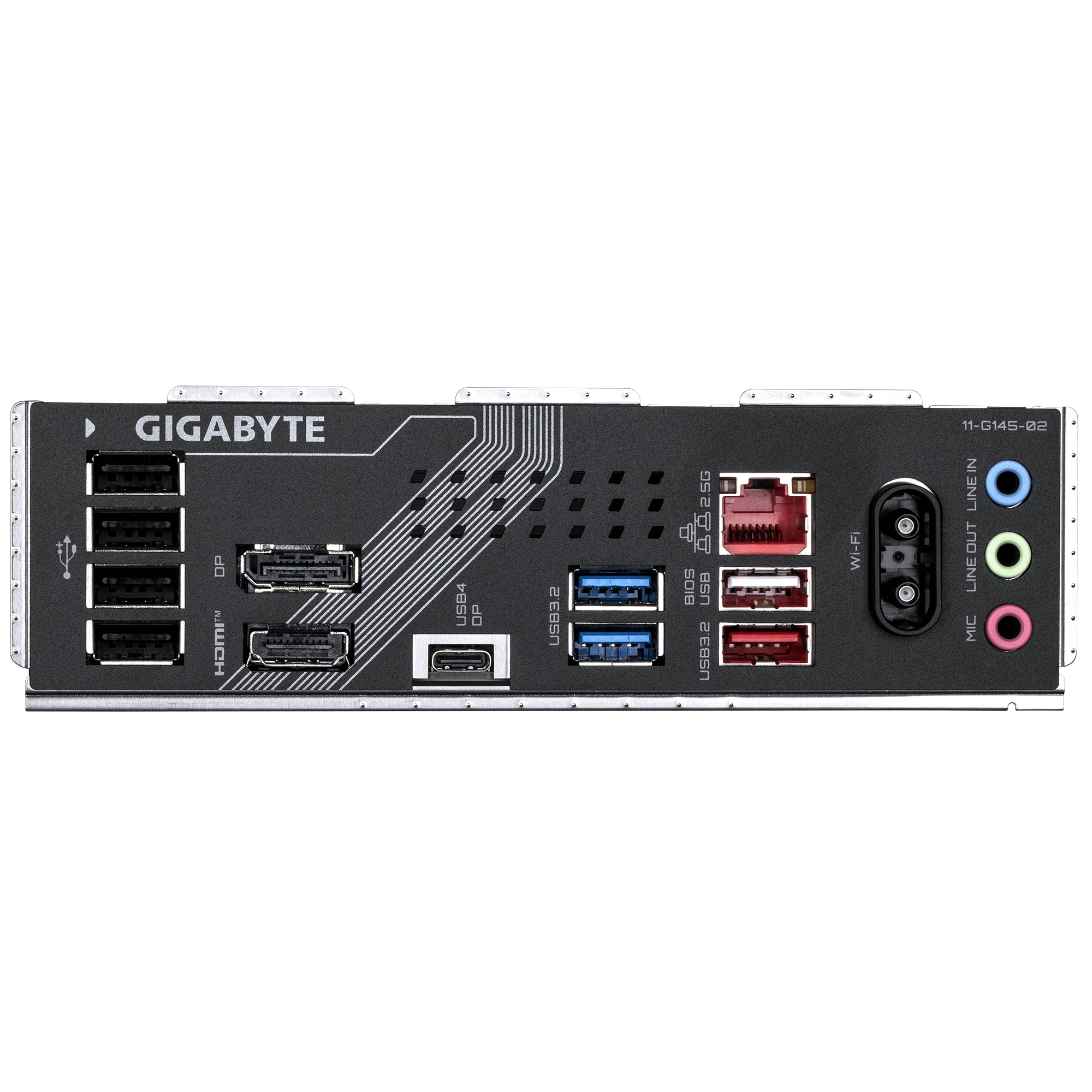

Connectors : 1 x HDMI port
Connectors : 1 x Display Port
Connectors : 1 x RJ-45
Connectors : 3 x Audio jacks
Connectors : 2 x SMA antenna connectors
USB Ports : 1 x USB 3.2 Gen 2 Type-A
USB Ports : 2 x USB 3.2 Gen1
USB Ports : 5 x USB 2.0
USB Ports : 1 x USB4 port Type-C
Dimension : ATX – 30.5 x 24.4 cm
Other : 256 Mb Flash ROM, UEFI AMI BIOS
