CPU Socket : AM5
Chipset : AMD X870
CPU supports : AMD 7000 Series Processors
CPU supports : AMD 8000 Series Processors
CPU supports : AMD 9000 Series Processors
Memory Standard : DDR5
Maximum Memory Supported : 192 GB
Number of Memory Slots : 4
Frequency Memory : 8000(OC) MHz
Support Dualchannel : Yes
Integrated Audio : ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Integrated Audio : High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Integrated Audio : Supports up to 32-Bit/192 kHz playback
Integrated Audio : Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Integrated LAN : ASUS LAN Guard
Integrated LAN : 1 x Realtek 2.5Gb Ethernet port
Integrated Wi-Fi : Bluetooth v5.4
Integrated Wi-Fi : 2×2 Wi-Fi 7 (802.11be)
PCI-E x16 : 1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI-E x16 : 2 x PCIe 4.0 x16
PCI-E x1 : 1
Interface Serial ATA : 2 x SATA 6.0 Gb/s
M2 socket : M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M2 socket : M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M2 socket : M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M2 socket : M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Raid support : 0,1,10
Power Connector : 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
Power Connector : 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

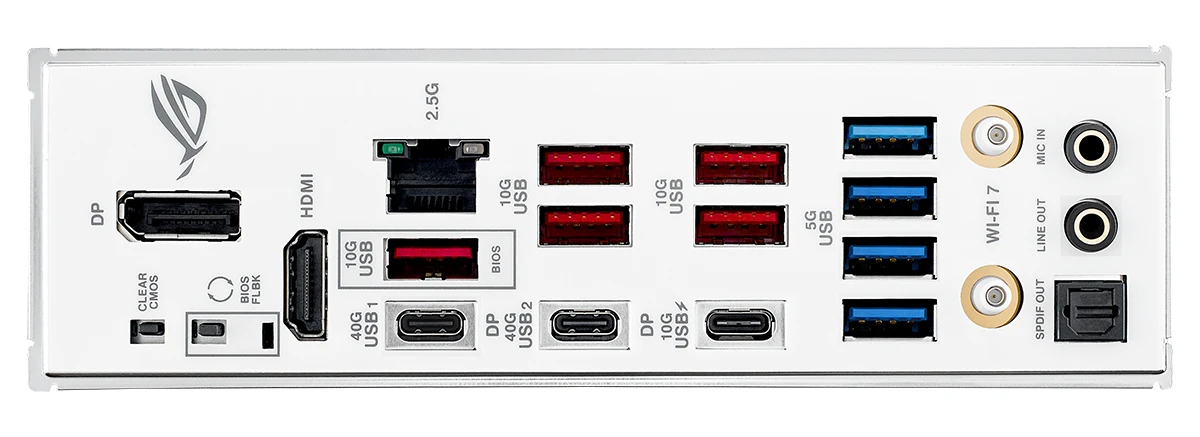

Connectors : 1 x HDMI port
Connectors : 1 x RJ-45
Connectors : 5 x Audio jacks
Connectors : 1 x BIOS Flashback Button
Connectors : 1 x Wi-Fi Module
USB Ports : 4 x USB 5Gbps ports Type-A
USB Ports : 2 x USB4 40Gbps ports Type-C
USB Ports : 6 x USB 10Gbps ports Type-A
Dimension : ATX – 30.5 x 24.4 cm
Other : 256 Mb Flash ROM, UEFI AMI BIOS
