Manufacturer → Fractal Design
Mnfr Part # → FD-CA-NODE-804-BL-W
Model → Node 804
Form Factor → Micro-ATX and Mini-ITX
Cooling → Cooling system: Front: 4 – 120mm fans (included is one hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed); Rear: 1 – 120/140mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed); Rear: 1 – 120mm fan slots (included is 1 hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed); Top: 4 – 120x140mm fans (not included); Fan controller: 1 – Integrated fan controller for up to 3 fans (included); Water cooling compatibility: Front (right chamber) – 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed. Front (left chamber) – 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed. Using a radiator in this position prevents the use of a fan in the top position just next to it. Top (right chamber) – 240/280 mm radiators up to 130mm thick (with fans) may be fitted if the HDD drive bays are taken out or placed elsewhere. No limitation to thickness. Top (left chamber) – 240 mm radiator configurations up to

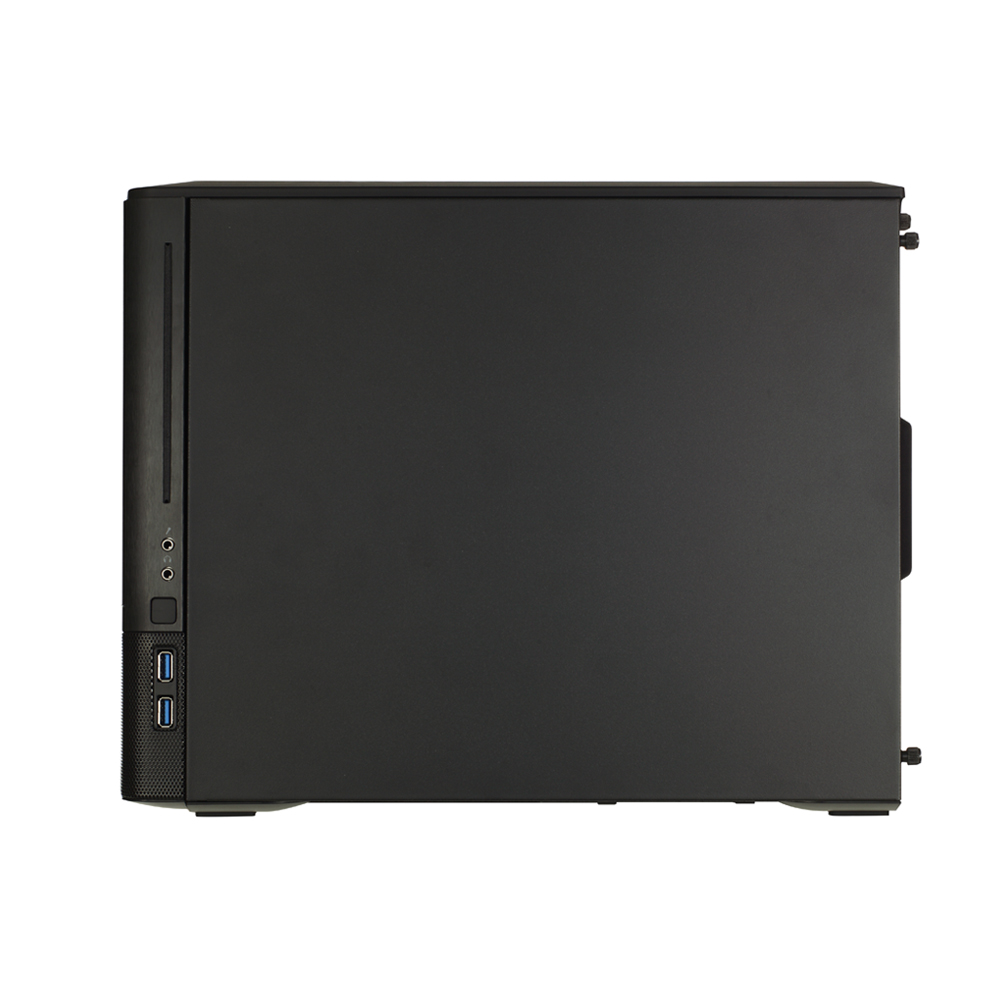

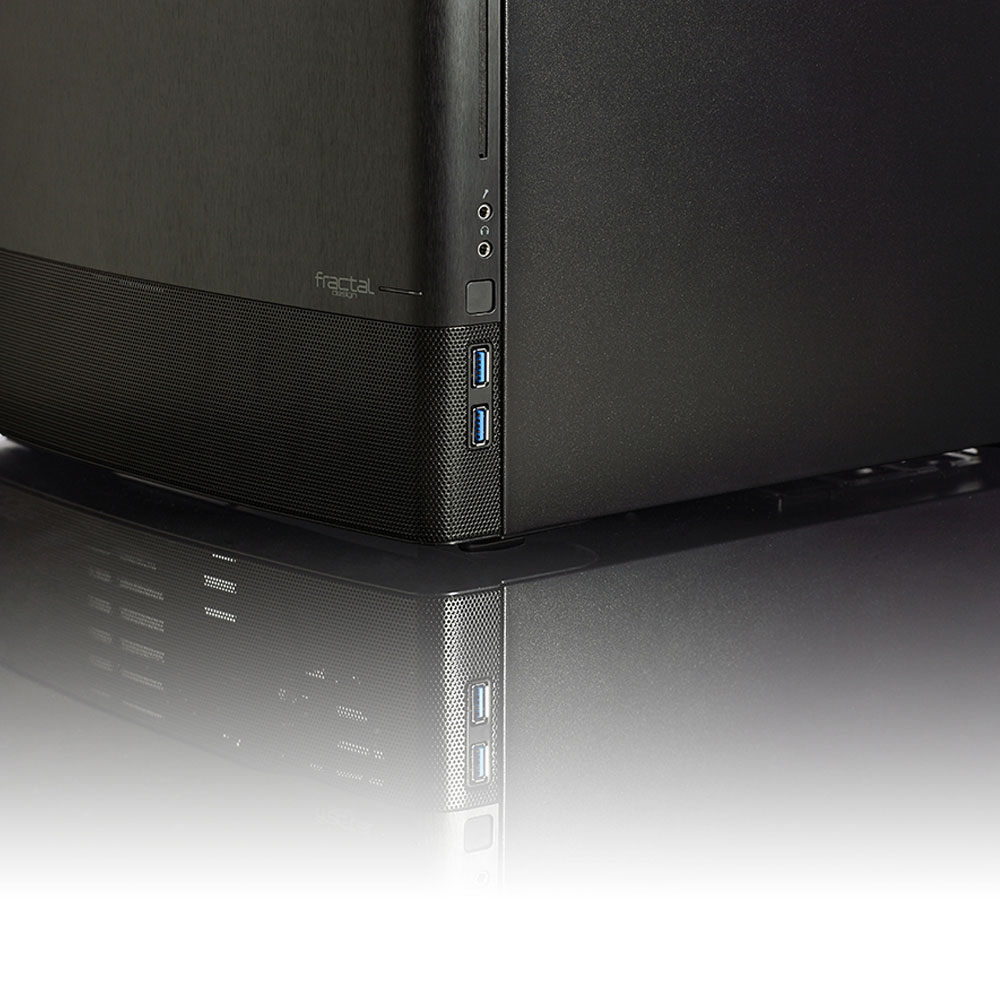

I/O → 2 – USB 3.0 Audio in/out Power button with LED (blue) HDD activity LED (white)
Slots for devices → 8 – 3.5″ , HDD positions 2 – 2.5″ , dedicated SSD unit positions 2 – Extra positions for either 3,5″ or 2,5″ drives

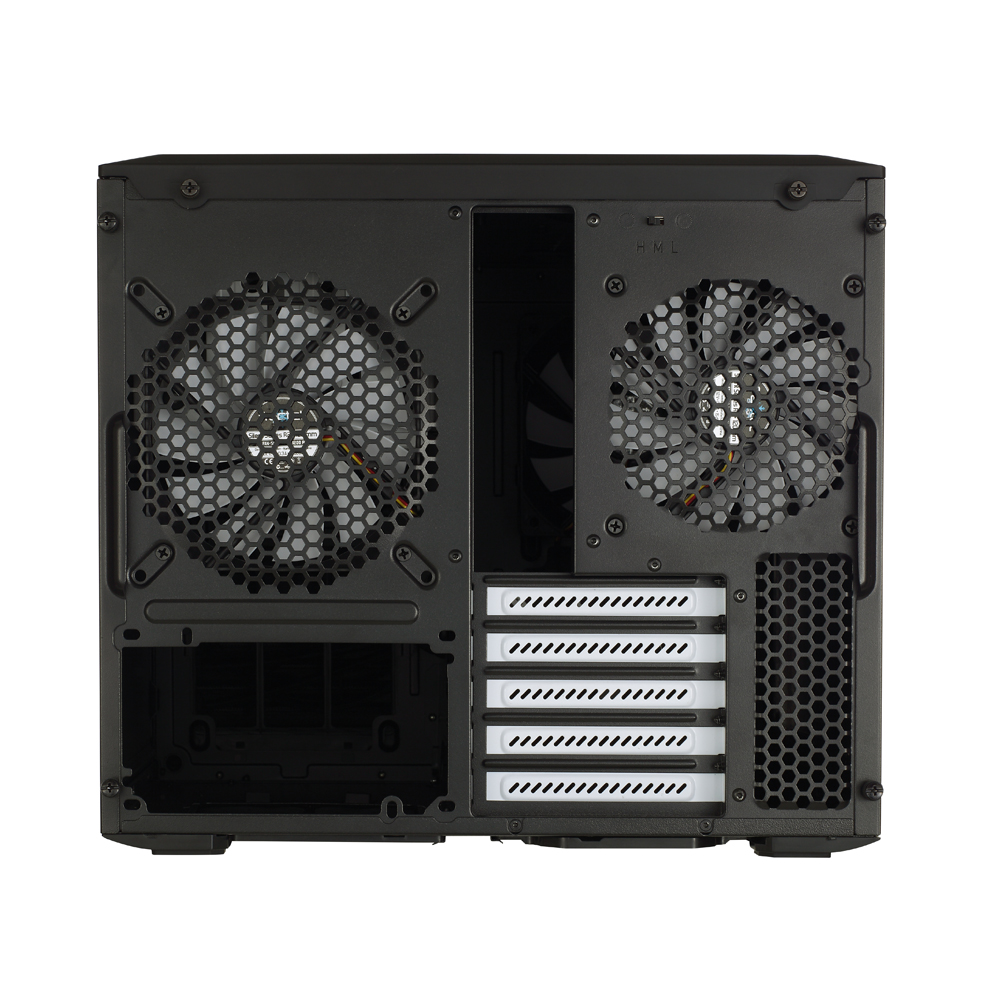

Expansion Slots → 5
Materials → –
Color → Black
Weight → 6 kg
Dimensions → 344 x 307 x 389 mm

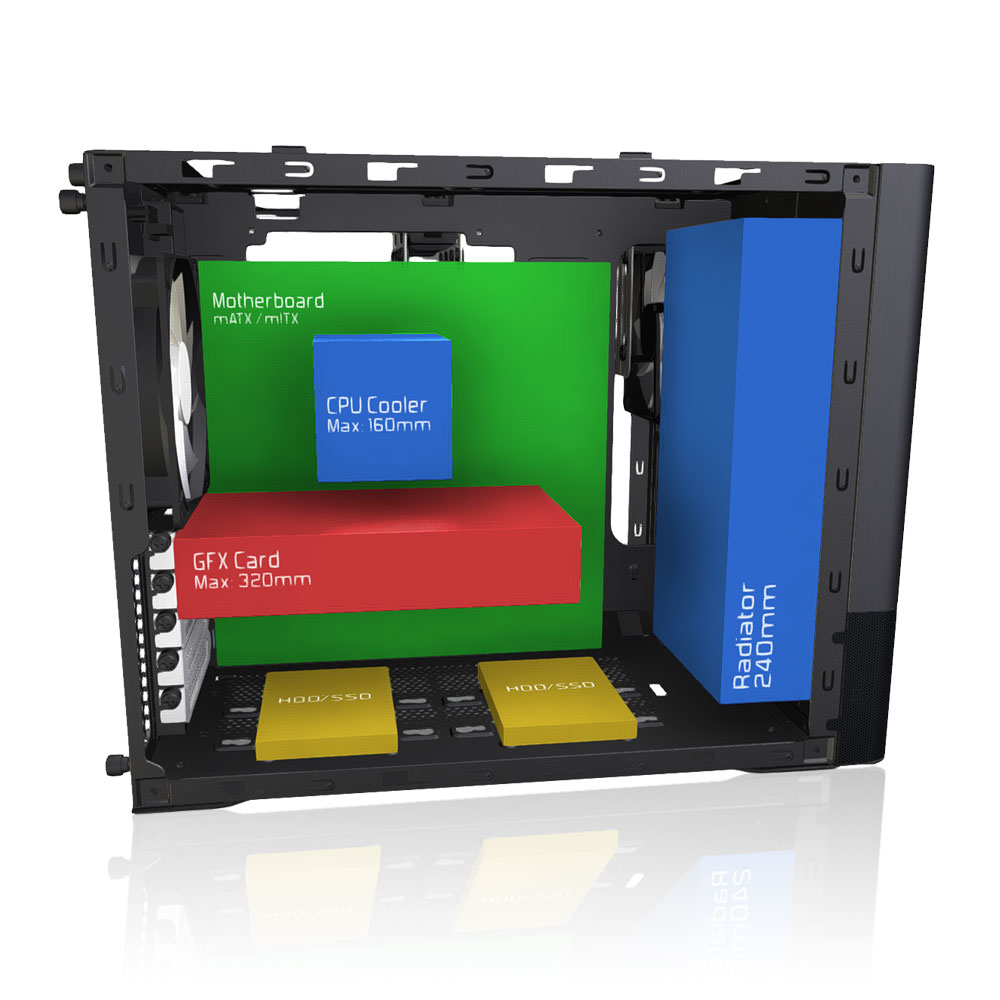

Other → CPU coolers up to 160 mm in height; PSU compatibility: ATX PSUs up to 260 mm deep; Graphics card compatibility: Graphics cards up to 320mm in length. Graphics cards up to 290 mm in length may be installed if a fan is installed in the lower position in the front.
Warranty → 24 Months
