Manufacturer → Fractal Design
Mnfr Part # → FD-CA-DEF-R5-BK

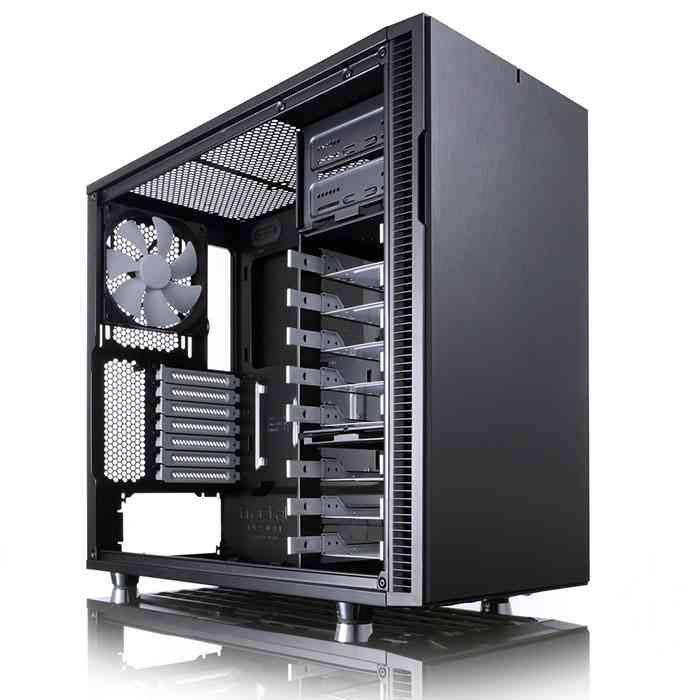

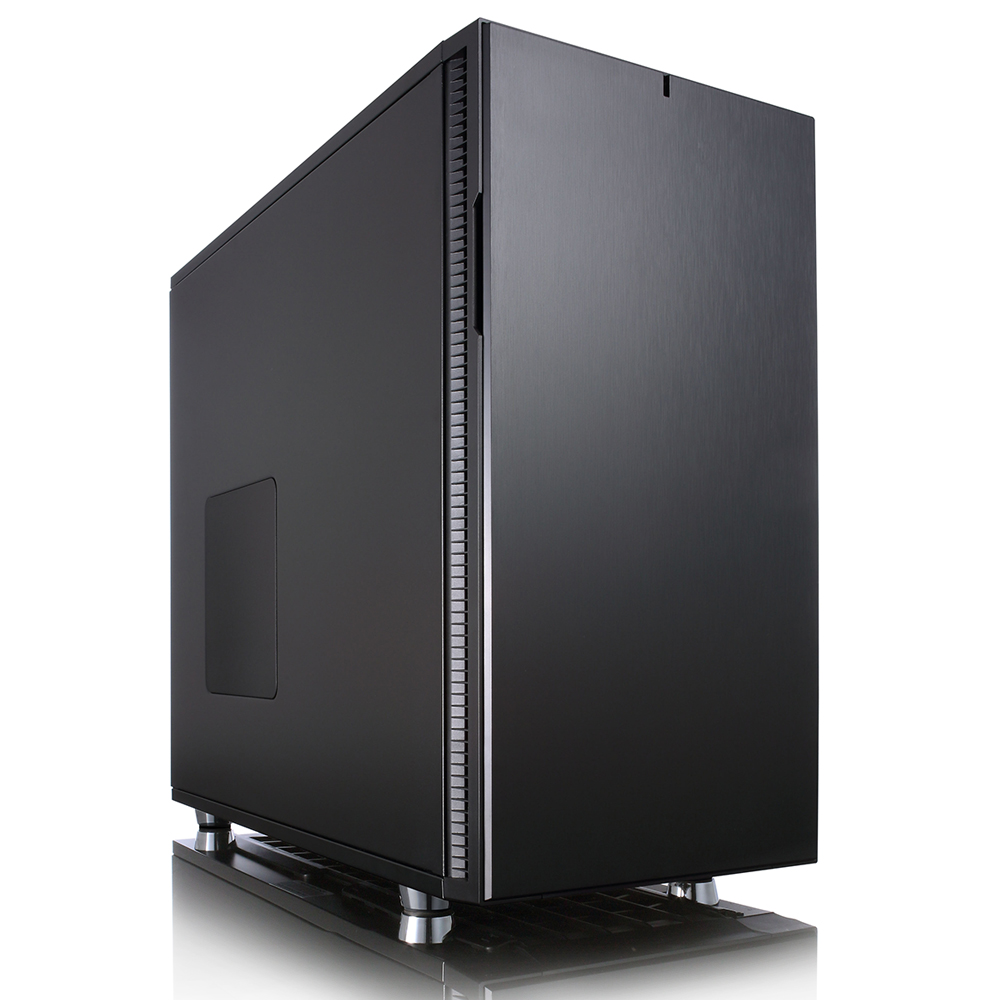

Model → DEFINE R5
Form Factor → ATX, Micro-ATX, Mini-ITX
Cooling → Cooling system:Front: 2 – 120/140 mm fans (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed); Rear: 1 – 120/140 mm fan (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed); Top: 3 – 120/140 mm fan (not included); Bottom: 2 – 120/140 mm fan (not included); Side: 1 – 120/140 mm fan (not included); Fan controller: 3 step fan controller for up to 3 fans; Dust filters: Bottom and front intakes; Water cooling compatibility:Front – 360, 280, 240, 140 and 120 mm radiators of all thicknesses (requires removal of drive bays); Top – 420, 360, 280, 240, 140 and 120 mm radiators. (A thickness limitation of 55mm for both radiator + fan applies on 420, 280 and 140 mm radiators) (420 and 360 mm radiators require removal of the ODD bay); Bottom – 120 or 240 mm radiator (Use of radiators in the bottom position limits the PSU length to 165 mm); Rear – 120 or 140 mm radiator
I/O → 2 USB 3.0 + 2 USB 2.0, Audio in/out
Slots for devices → 2 – 5.25″ bays (removable); 8 – 3.5″ HDD positions (can also accommodate 2.5″ units); 2 – 2.5″ dedicated SSD unit positions
Expansion Slots → 7
Materials → –
Color → Black
Weight → 11.20 kg
Dimensions → 232 x 451 x 521mm
Other → CPU coolers up to 180mm in height; ATX PSUs up to 190/170 mm with a bottom 120/140mm fan installed; Graphics cards up to 310 mm
Warranty → 24 Months
