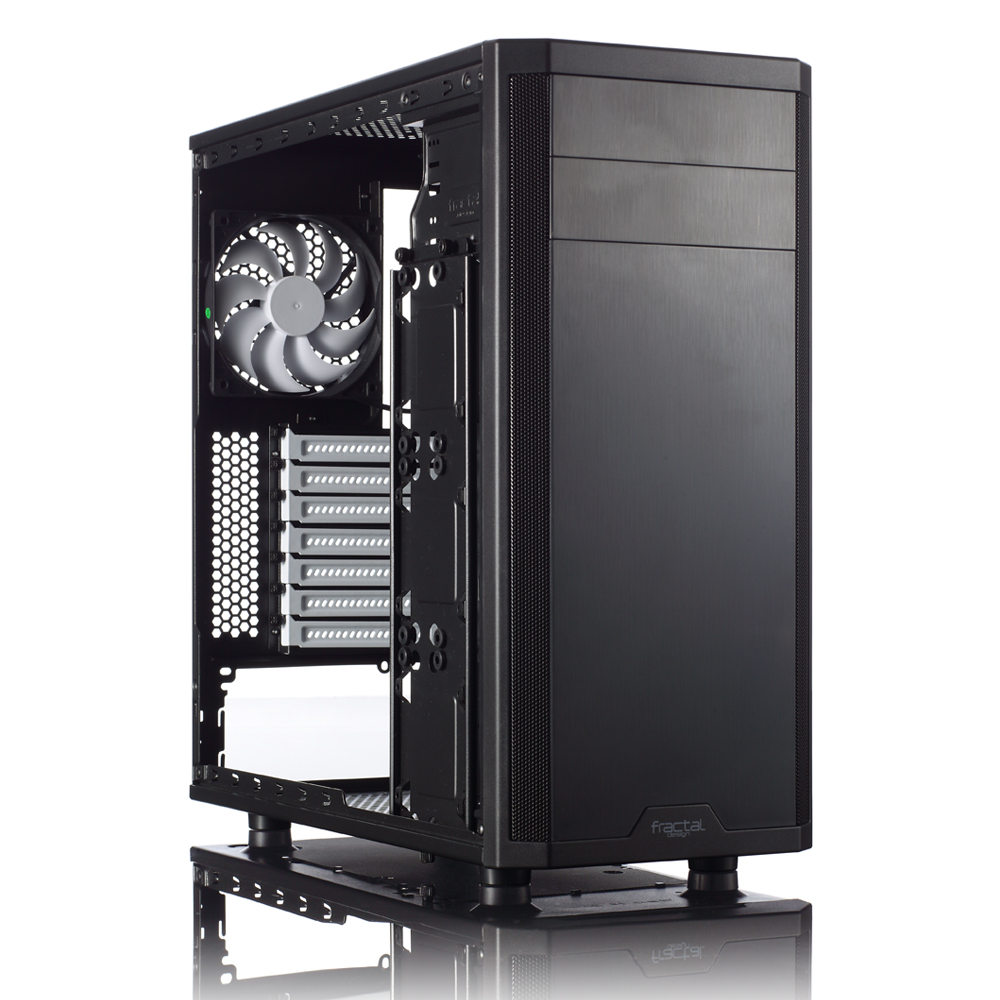

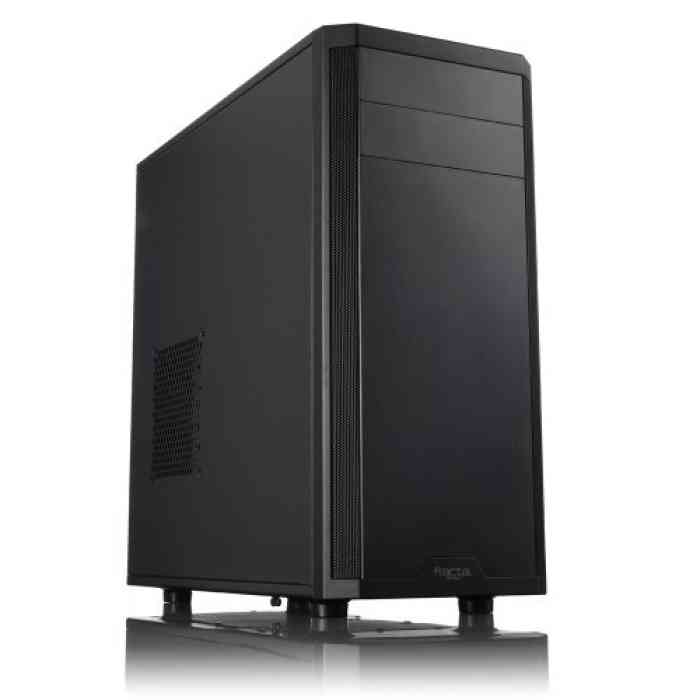

Manufacturer → Fractal Design
Mnfr Part # → FD-CA-CORE-2300-BL
Model → 2300 MID TWR
Form Factor → Mini-ITX, Micro-ATX ATX
Cooling → Cooling system:Front: 2 – 120mm fans (included is 1 Fractal Design silent 120mm fan, 1200 RPM speed) OR 1 – 140mm fan (not included), placed near ODD cage OR 1 – 140mm fan (not included), placed near case bottom ; Rear: 1 – 120mm fan (included is 1 Fractal Design silent 120mm fan, 1200 RPM speed); Top: 2 – 120/140mm fan (not included); Bottom: 1 – 120mm fan (not included, PSU length limits apply) OR 1 – 120mm fan (not included, requires removal of lower HDD cage) OR 1 – 140mm fan (not included, requires removal of lower HDD cage; Side: 1 -140mm fan (not included); 1 – integrated fan controller on the backside for up to 3 fans; Water Cooling compatibility:Front – Slim 240mm radiator (with lower HDD cage moved, upper HDD cage removed and lower ODD slot unused) Top – Slim 240mm radiator (with upper ODD slot occupied by a device no longer than 150mm and with no components on the upper 23 mm on the motherboard that are taller than 34mm); Rear – 120 mm radiator
I/O → 1 USB 3.0 and 1 USB 2.0, Audio in/out
Slots for devices → 2 drive bays of 5,25″ or 4 bays 3.5″
Expansion Slots → 7
Materials → –
Color → Black
Weight → 5.20 kg
Dimensions → 195 x 431 x 450mm
Other → Graphics cards up to 380mm; CPU coolers up to 162 mm in height; Supports ATX PSUs up to 205/185 mm with a bottom 120/140mm fan
Warranty → 24 Months
